How to Choose the Right Steel Profile for Load and Fabrication Needs

Selecting the right steel profile is critical for technical evaluators balancing structural load requirements, fabrication efficiency, and total project cost.

From section strength and weldability to dimensional tolerance and downstream processing, each choice can directly affect performance and delivery.

This guide explains how to assess each steel profile with more precision and connect material choice to real manufacturing and application needs.

Start With the Real Load Case, Not the Catalog

A steel profile should be selected around actual service conditions, not just familiar section names or stock availability.

That sounds obvious, yet many wrong choices begin with a default beam, channel, or hollow section.

The first question is simple: what kind of load will this steel profile carry over its full life cycle?

In practical work, load type often matters as much as total load value.

A profile performing well under static compression may behave very differently under bending, torsion, impact, or cyclic stress.

This is why steel profile evaluation should begin with a short load map:

• Maximum design load and overload allowance
• Span length and support conditions
• Expected bending axis and torsional exposure
• Fatigue risk from repeated loading
• Temperature, corrosion, and vibration conditions

Once these conditions are clear, the section shape becomes easier to judge.

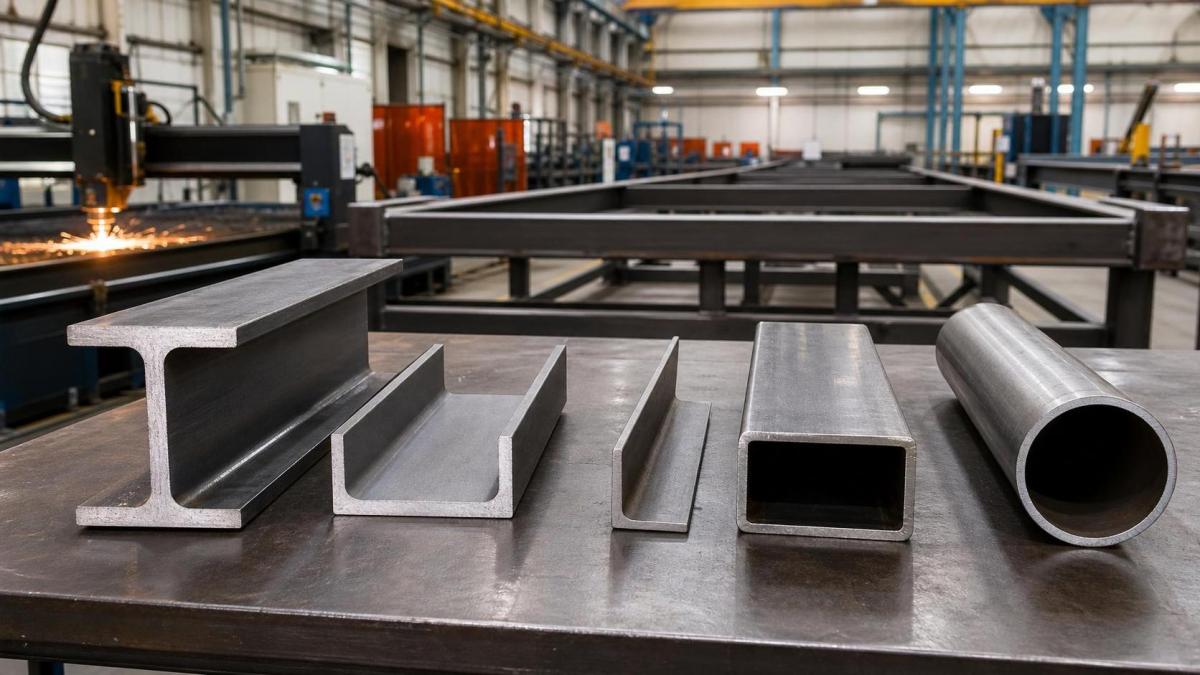

For example, an I-beam steel profile is efficient for major-axis bending.

A rectangular hollow steel profile may offer better torsional stability and cleaner fabrication for frames.

An angle or channel steel profile can reduce material use in lighter support assemblies.

From a decision standpoint, shape efficiency should always be linked to the dominant loading mode.

Match Section Geometry to Structural Behavior

After the load case is defined, geometry becomes the next filter.

The right steel profile is not simply the strongest section.

It is the one that delivers enough stiffness, strength, and stability with manageable weight and fabrication effort.

Several section properties deserve close attention:

• Section modulus for bending resistance
• Moment of inertia for deflection control
• Radius of gyration for buckling performance
• Torsional constant for twist resistance
• Wall thickness for local stability and joining

This is where many steel profile decisions become more nuanced.

A lighter section may meet strength targets but fail stiffness limits.

Another profile may look robust but create unnecessary transport and welding cost.

More importantly, local buckling risk increases when a steel profile uses thin walls under concentrated load.

That matters in brackets, machine frames, lifting structures, and modular systems.

In recent projects, compact hollow sections have gained attention because they combine visual cleanliness with strong torsional behavior.

Still, they are not automatically the best steel profile for every layout.

If internal access, drainage, coating, or field welding is difficult, the geometry advantage may shrink fast.

Check Fabrication Reality Early

A technically sound steel profile can still become the wrong choice if fabrication is inefficient.

This is often the point where evaluation moves from engineering theory into project reality.

The best approach is to review the full processing path before freezing the section.

Key checks include:

1. Can the steel profile be cut accurately with current equipment?
2. Will drilling, punching, or slotting affect edge quality?
3. Is the wall thickness suitable for reliable welding?
4. Will distortion control require extra fixtures or rework?
5. Can coating, galvanizing, or painting reach all surfaces?

In actual fabrication, section accessibility is a recurring issue.

A closed steel profile may improve stiffness but complicate weld inspection and internal corrosion protection.

An open steel profile can simplify connections, though it may need extra bracing against twist.

This also affects downstream lead time.

If a profile demands repeated fitting, special tooling, or slow weld sequencing, schedule pressure rises quickly.

For that reason, steel profile selection should involve both structural and fabrication review at the same stage.

Do Not Ignore Grade, Tolerance, and Supply Stability

Section shape is only part of the decision.

A steel profile must also match grade, tolerance, and sourcing requirements.

Two profiles with similar dimensions can behave very differently because of chemistry, mechanical properties, or production consistency.

This becomes more important when the steel profile enters automated fabrication, robotic welding, or tight-fit assemblies.

The checklist below is worth using during supplier comparison:

• Applicable grade and standard, such as ASTM, EN, or JIS
• Yield strength and tensile range
• Impact toughness if low temperatures apply
• Straightness, squareness, and dimensional tolerance
• Surface condition and scale level
• Lot traceability and mill test documentation
• Availability in required lengths and batch size

A steel profile that looks cheaper on paper may create hidden cost through poor tolerance or unstable delivery.

That usually appears later as extra shimming, fit-up correction, scrap, or line stoppage.

More noticeable lately is the pressure on supply planning.

Projects now often need a steel profile decision that balances technical suitability with procurement reliability.

That means standardization can be an advantage when multiple profiles appear equally acceptable.

Compare Common Steel Profile Options by Use Case

A side-by-side comparison often makes the selection path clearer.

The table below highlights how each steel profile typically performs in decision-focused scenarios.

This comparison does not replace calculation, but it does improve early screening.

In many cases, the right steel profile emerges after comparing not one factor, but three together.

Those factors are load behavior, fabrication simplicity, and supply confidence.

Use a Practical Decision Sequence

When deadlines are tight, structured evaluation prevents costly shortcuts.

A practical steel profile decision sequence usually works better than isolated checks.

1. Define the dominant load and service environment.
2. Shortlist steel profile shapes that suit that behavior.
3. Verify stiffness, buckling, and local stability.
4. Review welding, cutting, coating, and assembly practicality.
5. Confirm grade, tolerance, and standard compliance.
6. Compare supply continuity, lead time, and total cost.
7. Select the steel profile with the best overall project fit.

This sequence keeps decisions grounded in actual performance and execution constraints.

It also reduces the risk of choosing a steel profile that looks efficient but performs poorly in production.

The clearest signal in current projects is this: selection quality improves when engineering and procurement criteria are reviewed together.

That creates faster approvals, fewer fabrication surprises, and better control of delivered cost.

In the end, the right steel profile is the one that carries the load reliably, fits the fabrication route cleanly, and remains stable across sourcing and execution. Use that standard, and the decision becomes much sharper.
