Why does steel angle choice matter so much in framing work?

Steel angle looks simple, but framing performance often depends on it more than expected.

In practical use, the right steel angle affects load transfer, hole alignment, weld access, and assembly speed.

That matters in building frames, equipment bases, supports, racks, stairs, platforms, and secondary steel details.

A small sizing mistake can create larger problems later, including twist, poor fit-up, and connection rework.

The broader steel industry also shapes this decision.

Steel products come from iron ore and scrap steel through steelmaking and rolling, then move into construction and manufacturing supply chains.

Because steel angle is a standard section product, availability, rolling tolerance, lead time, and price stability can influence project choices.

So the framing question is not only “Will it hold?”

It is also “Will it connect cleanly, arrive on time, and fit without wasted labor?”

How do you judge the load limit of a steel angle without guessing?

Load limit is not a single catalog number.

A steel angle can carry very different loads depending on length, orientation, restraint, and connection detail.

The first check is the type of loading.

• Compression members may fail by buckling before the steel reaches yield strength.
• Beam-like members may be controlled by bending and deflection.
• Braces often depend on combined axial force and connection eccentricity.
• Shelf or seat angles may be governed by local bearing at the leg.

Leg size and thickness matter, but unsupported length usually changes the answer more than people expect.

A long slender steel angle may look strong on paper, yet buckle early in real framing conditions.

Another common mistake is ignoring leg orientation.

An angle loaded through one leg behaves differently from an angle loaded symmetrically through both legs.

The load path becomes uneven, and that increases torsion and connection stress.

A quick field judgment table helps separate reasonable choices from risky ones.

If the framing carries critical loads, use the project design standard instead of a rule-of-thumb estimate.

That is especially important in platforms, seismic bracing, machinery supports, and transport structures.

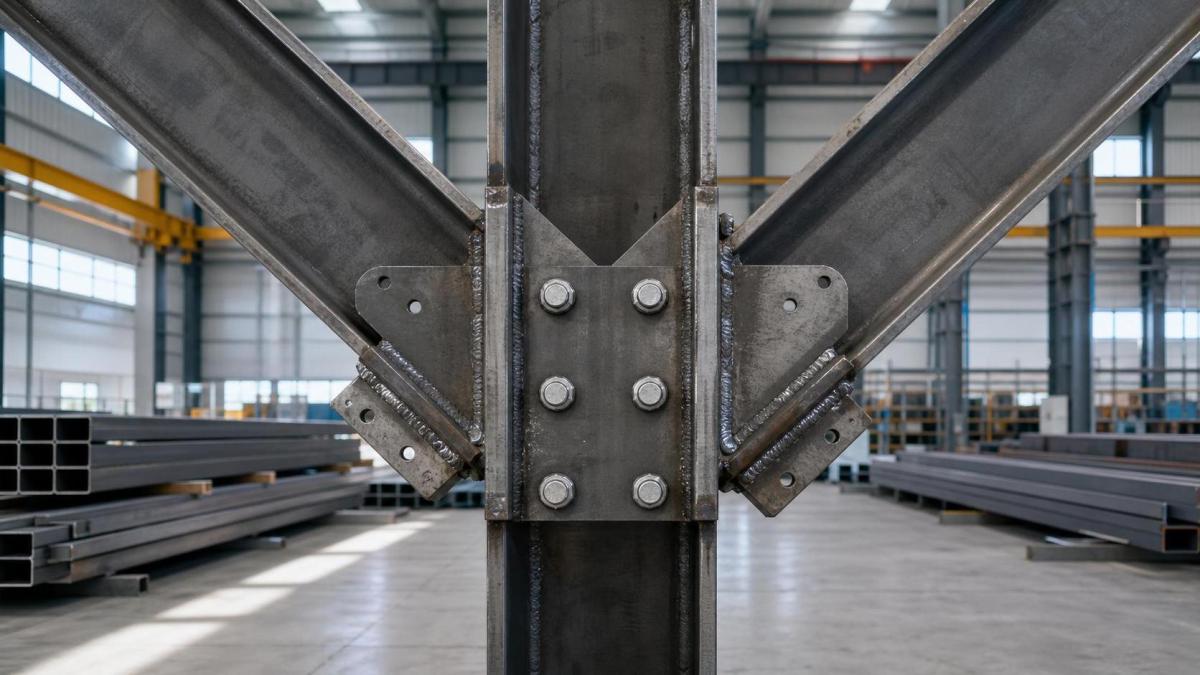

Bolted or welded: which connection method works better for steel angle?

There is no universal winner.

The better method depends on access, load direction, inspection needs, and fit-up tolerance.

Bolted steel angle connections are usually preferred when site assembly speed matters.

They simplify replacement, reduce hot work, and make alignment correction easier during erection.

They also work well when the frame may need future modification.

Welded connections are often chosen when space is tight or a cleaner profile is needed.

A welded steel angle can also avoid hole weakening in short members.

Still, weld distortion is a real issue, especially on unequal leg angles or thin sections.

Heat input can pull the legs out of square and create fit-up trouble at the next connection.

A balanced way to compare the two methods is useful before detailing begins.

In many framing jobs, mixed connections are the most practical answer.

For example, shop weld the clip or bracket, then bolt the steel angle on site.

That approach supports factory control while keeping field installation flexible.

What usually causes poor fit-up, even when the steel angle size is correct?

Fit-up failures often come from detail assumptions, not from the section itself.

The steel angle may be correct in theory, yet still fail to assemble smoothly.

One frequent problem is ignoring rolling tolerance.

Leg length, thickness, straightness, and corner radius vary within standard limits.

If hole patterns are too tight, those normal variations become site problems.

Another cause is using nominal dimensions for mating parts without checking actual clearance.

That becomes serious where steel angle frames meet gusset plates, channels, tube sections, or concrete anchors.

Need-to-know fit-up checks include the following.

• Confirm hole size and slot direction before fabrication release.
• Check root radius interference where plates sit close to the angle heel.
• Leave practical wrench and weld access around both legs.
• Review galvanizing or paint thickness where tight contact surfaces exist.
• Measure diagonals on assembled frames, not only member lengths.

A steel angle used in repetitive framing should also be checked with one trial assembly.

That small step often finds mismatch early, before a full production batch is drilled or welded.

When should you use equal angle, unequal angle, or a different section entirely?

Equal angle is the usual starting point for general framing.

It is easy to source, simple to detail, and widely used across building and equipment structures.

Unequal angle becomes useful when one leg must connect and the other must carry projection or seat load.

That can save space and reduce extra plates in compact layouts.

Even so, an angle is not always the best section for framing.

If torsion is high, or the member spans farther, channel, tube, or tee sections may perform better.

The right comparison is less about habit and more about behavior in service.

Availability also matters.

A theoretically ideal section is less useful if supply is unstable or rolling lead time disrupts the schedule.

That is why many framing decisions balance structural need with practical steel supply conditions.

What are the most common mistakes with steel angle framing, and how can they be avoided?

The first mistake is choosing a steel angle by leg size alone.

Thickness, span, restraint, and connection layout are just as important.

The second mistake is treating all loads as static and centered.

In real framing, vibration, impact, and offset loading are common.

The third mistake is underestimating fabrication sequence.

If holes are drilled before confirming final orientation, mirrored parts can appear on site.

The fourth mistake is skipping corrosion planning.

Outdoor steel angle framing may need galvanizing, paint systems, drain paths, and coating repair details.

A short pre-release checklist is usually enough to reduce most errors.

• Verify actual load case, not only estimated weight.
• Check connection access with tools and welding clearance.
• Review tolerance stack-up across all mating parts.
• Confirm coating, environment, and maintenance exposure.
• Trial-fit one unit before repeating production.

That kind of discipline saves more time than late correction after steel reaches the site.

So what is the best next step before finalizing a steel angle for framing?

Start by defining the job in plain terms.

Is the steel angle acting as a brace, seat, edge frame, support leg, or connection element?

Then match that role with four checks: load path, connection method, fit-up tolerance, and supply practicality.

If any one of those remains unclear, the framing detail is not ready.

The most reliable workflow is simple.

• Compare two or three steel angle sizes, not just one favorite option.
• Decide early whether bolting, welding, or a mixed detail fits the job better.
• Check tolerances and clearances using actual connection geometry.
• Align the detail with material availability, coating needs, and schedule risk.

A good steel angle decision is rarely about one number on a drawing.

It is a balanced choice that supports strength, clean assembly, and realistic downstream execution.

When those checks are done early, framing work tends to move faster and with fewer surprises.
