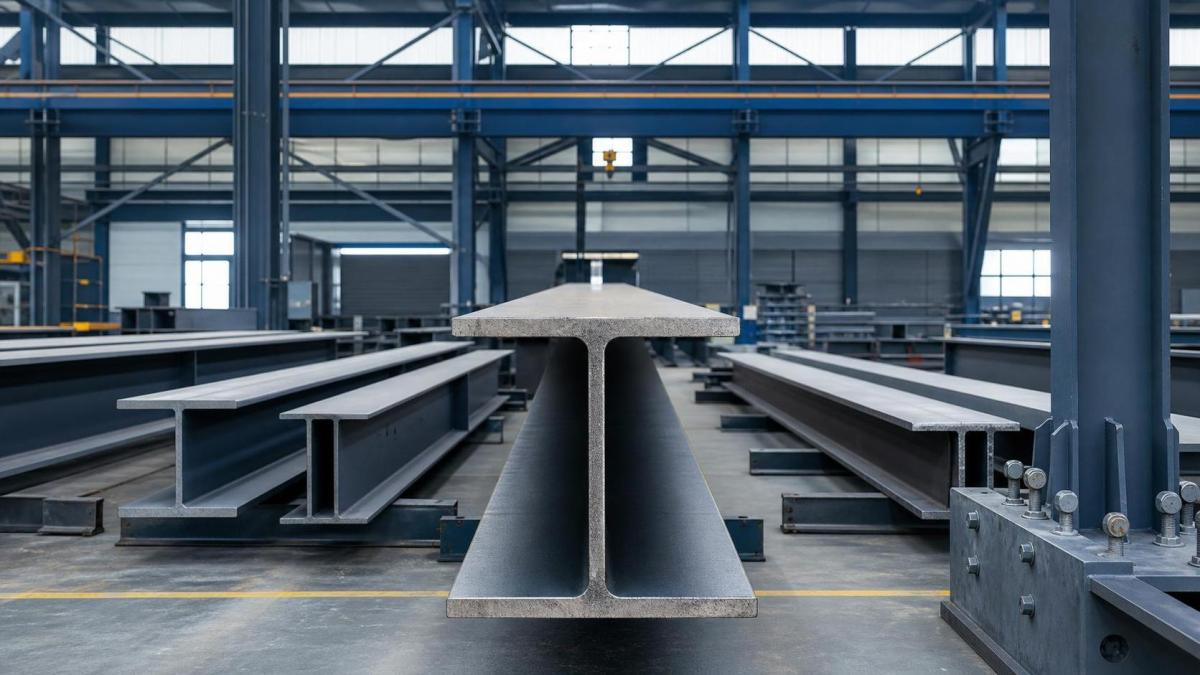

How to Choose the Right H Beam Size for Structural Loads

Choosing the right H beam size is critical for structural safety, cost control, and fabrication efficiency.

The decision is not only about matching depth and weight.

It also depends on load path, span, steel grade, connection details, and service conditions.

In real projects, a well-sized H beam supports reliable performance and smoother procurement.

Start with the Real Load Case

Every H beam selection begins with the actual structural load, not the catalog alone.

That sounds obvious, yet many sizing mistakes start with rough assumptions.

You need to separate dead load, live load, equipment load, wind load, and possible impact load.

Then confirm whether the H beam works as a floor beam, roof beam, transfer member, or column section.

Each role changes the demand on bending, shear, deflection, and local stability.

A lightly loaded long-span beam may fail serviceability before strength becomes critical.

By contrast, a short beam carrying concentrated machinery loads may be governed by shear or web bearing.

Key questions before sizing

• Is the load uniformly distributed, partially distributed, or concentrated?
• Will the H beam support static loads only, or dynamic loads too?
• Are there future load increases from equipment upgrades or layout changes?
• Does the beam act alone, or as part of a composite or braced system?

When these inputs are clear, H beam evaluation becomes far more accurate.

Match H Beam Size to Span and Support Conditions

Span length strongly affects the right H beam size.

As the span grows, bending moment and deflection rise quickly.

This often pushes designers toward deeper sections, even when total load stays similar.

Support condition matters just as much.

A simply supported H beam behaves differently from a continuous or fixed-end member.

If lateral restraint is limited, lateral-torsional buckling may control the final size.

That is why an H beam that works on paper may still be risky in the field.

Practical review points

1. Confirm clear span, effective span, and any cantilever portion.
2. Check whether bracing points reduce unbraced length.
3. Review support stiffness and actual connection behavior.
4. Assess deflection limits based on use, not just code minimums.

In many buildings, serviceability drives H beam size earlier than expected.

Understand Section Properties, Not Just Dimensions

Two H beam options may look close in size but perform very differently.

The real comparison should focus on section modulus, moment of inertia, flange width, web thickness, and unit weight.

For bending resistance, section modulus is a major indicator.

For deflection control, moment of inertia becomes more important.

For connection design, flange and web geometry can save or add fabrication time.

This is where H beam selection becomes a balance between engineering and project execution.

Typical property checks for H beam evaluation

A smart H beam choice is rarely the biggest section available.

It is the section that meets demand with a reasonable fabrication and cost profile.

Check Steel Grade, Standards, and Supply Stability

H beam size cannot be reviewed separately from material grade.

A higher strength grade may reduce section weight, but that does not always lower total project cost.

Availability, lead time, weldability, and certification requirements also matter.

In the steel industry, upstream supply conditions can directly affect delivery timing and purchasing flexibility.

This is especially relevant when a project depends on standard H beam sizes from rolling mills.

If you specify a less common section, procurement risk may increase.

What to confirm with suppliers

• Applicable standards such as ASTM, EN, JIS, or local equivalents.
• Mill certificates and mechanical property consistency.
• Rolling availability for required H beam dimensions.
• Tolerance range, straightness, and surface condition.
• Delivery schedule and batch quantity limitations.

A technically ideal H beam is still a weak choice if it creates supply delays.

Consider Connections, Fabrication, and Installation Early

One common selection mistake is focusing only on beam capacity.

In practice, H beam size also affects how easily the member can be cut, drilled, welded, transported, and erected.

A heavier H beam may reduce quantity but raise crane demand and site handling cost.

A narrower flange may complicate bolted end-plate details.

A thinner web may require stiffeners around concentrated reactions.

These details shape the true installed cost.

Fabrication-focused H beam checklist

1. Review whether standard connection plates fit the flange width.
2. Check access for bolt tightening and welding sequence.
3. Estimate handling weight for transport and lifting equipment.
4. Assess whether stiffeners, coping, or doubler plates are needed.
5. Compare shop labor savings against raw steel tonnage changes.

This early review usually leads to a more realistic H beam decision.

Watch for Common H Beam Selection Risks

Even experienced teams can misjudge H beam size when schedules are tight.

The most frequent problem is oversimplifying the load condition.

Another issue is using only strength checks while ignoring deflection or vibration.

A third risk is selecting a section that is efficient structurally but difficult to source.

More noticeably, some projects treat all H beam applications the same, which creates avoidable mismatch.

Red flags during evaluation

• No clear distinction between service load and ultimate load.
• No confirmation of bracing or unbraced length.
• No review of local web bearing under point loads.
• No procurement check for standard H beam availability.
• No coordination between structural and fabrication teams.

When these gaps appear, revisit the sizing logic before final approval.

A Practical Decision Path for Choosing H Beam Size

A practical decision path keeps the H beam selection process consistent and defendable.

Start with load definition and span confirmation.

Then compare several H beam options using strength, stiffness, and constructability criteria.

After that, align the shortlist with steel grade, standards, and supply conditions.

Finally, validate the preferred section against connection details and installation limits.

Simple step-by-step flow

1. Define all load types and design combinations.
2. Confirm span, supports, and restraint conditions.
3. Screen H beam sizes using section properties.
4. Check deflection, vibration, and local effects.
5. Review fabrication, transport, and erection impact.
6. Verify supply stability before final release.

This approach improves both engineering confidence and commercial control.

If you need to choose the right H beam size, treat it as a full project decision, not only a section lookup.

That mindset leads to safer structures, smoother fabrication, and fewer procurement surprises.
