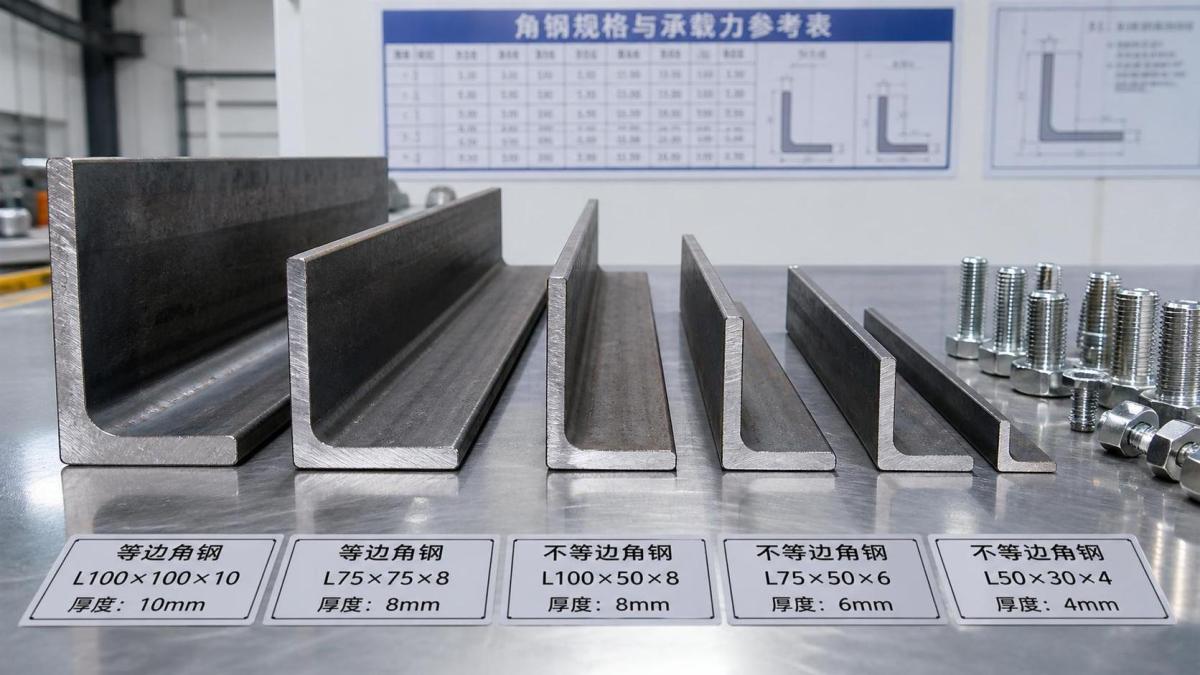

Steel Angle Load Capacity: How to Judge Size and Thickness

Choosing the right steel angle is not just about going bigger. Load capacity depends on size, thickness, span, support conditions, and connection details.

A steel angle that looks strong on paper can still underperform if the leg dimensions or thickness do not match the real load path.

That is why buyers and project teams need a practical way to judge steel angle load capacity before ordering material.

This guide explains how steel angle size and thickness affect strength, stiffness, and stability, using clear examples instead of overly theoretical language.

What Determines Steel Angle Load Capacity

Steel angle load capacity is not a single fixed number. It changes with geometry, material grade, unsupported length, and how the member is loaded.

In simple terms, capacity comes from two things. First, the steel angle must resist stress. Second, it must avoid excessive bending, twisting, or buckling.

The main factors are usually easy to identify:

• Leg size, such as 50 x 50 mm or 100 x 75 mm
• Thickness, such as 5 mm, 8 mm, or 10 mm
• Equal angle or unequal angle shape
• Steel grade and yield strength
• Load type, including tension, compression, bending, or combined load
• Span length and restraint conditions
• Connection method, including bolting and welding

A larger steel angle usually carries more load, but that is only part of the story. Thickness can sometimes improve performance more than a modest increase in leg size.

More importantly, compression members can fail by buckling long before the steel reaches its yield strength. This is where many rough estimates go wrong.

How Size Affects the Performance of a Steel Angle

When people discuss steel angle size, they usually mean the two leg dimensions. For equal angles, both legs are the same. For unequal angles, one leg is longer.

Bigger legs increase cross-sectional area. That improves the steel angle’s ability to carry axial force and bending moment.

Size also changes the section modulus and radius of gyration. These properties matter because they affect bending resistance and buckling behavior.

For example, a 100 x 100 steel angle generally performs much better than a 50 x 50 section under the same load and span.

Still, two steel angle sections with similar area may behave differently if one has a better geometric distribution for the actual load direction.

That matters in brackets, frames, towers, supports, and edge reinforcements, where the load often acts off-center.

Equal Angle vs Unequal Angle

Equal angle sections are common in general fabrication. They are simple to source, easy to detail, and work well in symmetric load conditions.

Unequal angle sections are useful when space is limited or when one leg needs more connection area. They can also improve efficiency in specific support layouts.

So, when judging a steel angle, do not compare by area alone. Look at how the shape fits the real installation.

Why Thickness Often Changes the Result Faster

Thickness has a direct effect on cross-sectional area. A thicker steel angle can carry more force and usually handles local stress better at holes and welded zones.

It also helps reduce the risk of local buckling in slender legs. This becomes important in compression members and heavily loaded brackets.

In practical purchasing, increasing thickness is often the quickest way to raise steel angle load capacity without redesigning the full connection geometry.

For instance, moving from a 75 x 75 x 5 mm steel angle to a 75 x 75 x 8 mm section may deliver a meaningful capacity gain.

However, thickness also adds weight and cost. It may affect drilling, welding, galvanizing, and transport planning.

That is why the best choice is rarely the thickest steel angle available. It is the one that meets load, safety, and fabrication needs without unnecessary excess.

A Practical Way to Judge Steel Angle Size and Thickness

If the goal is early-stage evaluation, a simple review process works well. It helps filter unsuitable steel angle options before detailed structural checking.

1. Identify the Actual Load Type

Start by asking what the steel angle is really doing. Is it carrying compression, supporting a shelf load, bracing a frame, or acting as a connection element?

A steel angle used in tension behaves very differently from one used as a long compression brace.

2. Check the Span or Unsupported Length

Longer unsupported length usually reduces capacity. This is especially true for compression and bending applications.

A steel angle that works over 500 mm may be unsuitable over 2 meters, even if the load itself does not change much.

3. Compare Area and Stiffness Together

Do not focus only on weight per meter. Compare section area, section modulus, and radius of gyration from the supplier’s section table.

These values give a clearer picture of how the steel angle will resist load and deflection.

4. Review Connection Capacity

Sometimes the steel angle is strong enough, but the bolt holes or weld size are not. In that case, the connection controls the design.

This is a common issue with thin steel angle sections used in brackets or support frames.

5. Allow for Safety Margin and Service Conditions

Real projects involve impact, vibration, corrosion allowance, installation deviation, and changing loads. Those conditions should influence steel angle selection.

This also means an apparently economical section may become risky once site conditions are included.

Typical Situations Where Wrong Judgments Happen

Several mistakes appear again and again when selecting a steel angle. Most come from judging by appearance instead of real structural behavior.

• Choosing a larger leg size but keeping thickness too thin
• Ignoring buckling risk in long compression steel angle members
• Assuming equal angle and unequal angle sections are interchangeable
• Using catalog weight as the main selection basis
• Overlooking connection failure around holes or weld toes
• Missing the effect of corrosion or outdoor exposure on long-term capacity

From recent market behavior, another clear signal is cost pressure. Teams often try to trim steel angle thickness first because it lowers material weight fast.

That can work in low-load applications. In critical supports, though, it may reduce stiffness and durability more than expected.

Quick Reference Table for Early Comparison

The table below is not a design code replacement. It is a quick way to compare steel angle options during inquiry and specification review.

How to Make a Better Steel Angle Decision

A good steel angle decision balances structural demand, processing convenience, delivery availability, and cost control.

In real procurement work, the most effective approach is usually straightforward:

1. Define the load case and service environment clearly.
2. Shortlist steel angle sizes that fit the installation space.
3. Compare thickness options for strength, stiffness, and fabrication impact.
4. Check connection limits before finalizing the section.
5. Confirm the section against the relevant design standard.

If the application is safety-sensitive, final verification should always come from a qualified structural calculation, not from visual judgment alone.

Even so, understanding how steel angle size and thickness interact gives a much stronger starting point for inquiries, quotations, and technical discussions.

The key takeaway is simple. Judge a steel angle by load path, length, thickness, shape, and connection together. That is how capacity is evaluated more accurately and more efficiently.
