Steel Angle Load Capacity: Key Sizing Mistakes to Avoid

Choosing the right steel angle affects load safety, stability, and code compliance from the start.

Many failures do not begin with bad steel.

They begin with simple sizing mistakes.

A wrong leg size, thin section, or ignored connection condition can reduce real steel angle load capacity far below expectations.

That gap often stays hidden until fabrication, inspection, or field loading.

In practice, steel angle selection should never rely on nominal size alone.

You need to check how the member carries force, how it is restrained, and how tolerances affect usable capacity.

Why Steel Angle Load Capacity Gets Misjudged

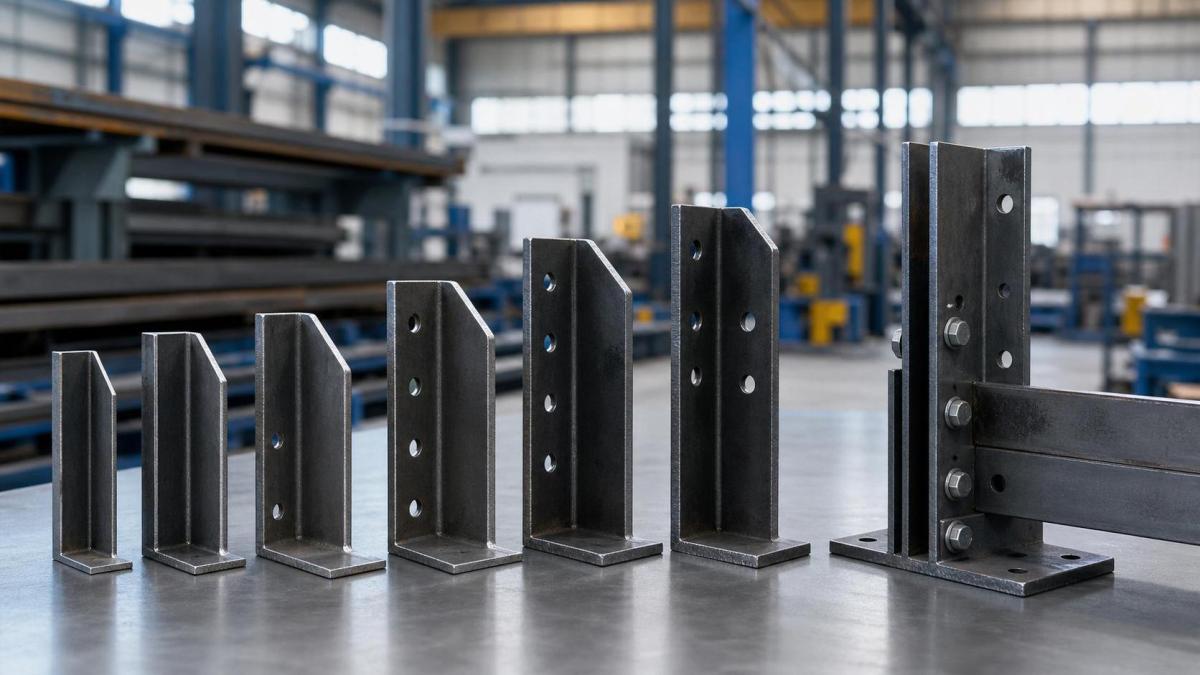

Steel Angle Load Capacity: Key Sizing Mistakes to Avoid

Steel angle looks simple, but its behavior is not always intuitive.

Unlike flat plate, angle sections are asymmetric.

That means bending, torsion, local buckling, and connection eccentricity can appear together.

From a load assessment view, one size may work in one direction and fail in another.

This is why steel angle load capacity must be tied to the actual service condition.

The problem becomes sharper when drawings only show angle dimensions without load path details.

Fabricators may match the profile, yet miss the structural requirement behind it.

This also explains why inspection findings often involve sizing, not material grade alone.

Sizing Mistake 1: Focusing Only on Leg Dimensions

One common error is selecting steel angle by leg length only.

A 50 x 50 angle may look adequate beside a 63 x 63 angle.

But visual similarity can hide a major difference in section properties.

Moment of inertia, radius of gyration, and section modulus matter just as much.

A larger leg does not automatically deliver enough steel angle load capacity.

The orientation of the angle changes performance too.

Equal angle and unequal angle sections behave differently under compression and bending.

For load-sensitive parts, always review:

  • Leg length and leg ratio
  • Section modulus in the working direction
  • Radius of gyration for compression checks
  • Connection layout and eccentricity

If those checks are skipped, selection often becomes a shape match instead of an engineering decision.

Sizing Mistake 2: Underestimating Thickness

Thickness is where many steel angle decisions go wrong.

A small thickness reduction may seem minor on paper.

In reality, it can sharply reduce stiffness, bolt bearing strength, and local buckling resistance.

This matters even more in clipped, welded, or perforated sections.

A thinner steel angle may pass a visual check while failing under service loads.

Corrosion allowance is another frequent blind spot.

Where moisture, chemicals, or outdoor exposure exist, nominal thickness is not the full story.

The effective steel angle load capacity may decline over time if thickness loss was never considered.

A practical review should include the following questions:

  1. Is the thickness based on strength, stiffness, or both?
  2. Will holes, notches, or weld heat affect the net section?
  3. Is corrosion allowance needed for the service environment?
  4. Are rolling tolerances acceptable for the design margin?

Sizing Mistake 3: Ignoring the Real Load Condition

Steel angle load capacity depends on how the load is applied, not just how much load exists.

That distinction is where many selection errors appear.

A member used in pure tension behaves differently from one carrying compression, bending, or combined loading.

Load duration also matters.

Static support angles may perform well, yet repeated vibration can trigger fatigue concerns at holes and weld toes.

More importantly, support conditions change effective length.

That changes buckling behavior and can lower usable capacity far below the nominal value.

When checking a steel angle for decision making, confirm whether the member sees:

  • Axial tension
  • Axial compression
  • Single-axis or biaxial bending
  • Impact, cyclic, or vibration loading
  • Temporary erection loads in addition to service loads

This step sounds basic, but it prevents a large share of field corrections.

Sizing Mistake 4: Treating Connection Design as Secondary

Even a correctly sized steel angle can underperform because of a weak connection.

This is often missed during early selection.

Bolt spacing, edge distance, weld length, and gusset alignment all influence actual steel angle load capacity.

If the load line does not pass through the section properly, eccentric forces appear.

That can cause twisting, uneven stress, and premature deformation.

Hole punching or slotting can create another issue.

The remaining net area may no longer support the intended load with adequate reserve.

A useful quick check is to compare member strength and connection strength side by side.

The lower value governs.

That simple habit catches many steel angle selection mistakes before procurement.

Sizing Mistake 5: Overlooking Standards, Tolerances, and Supply Variations

Not every steel angle with the same nominal size is functionally identical.

Regional standards, mill tolerances, and grade substitutions can change performance.

This is especially relevant when sourcing across multiple suppliers.

For example, actual root radius, straightness, and thickness tolerance affect fabrication fit and load behavior.

A steel angle that is technically within tolerance may still narrow the safety margin.

This matters more when the design already runs close to its limit.

Before approval, verify:

Check Item Why It Matters
Applicable standard Confirms dimensions, tolerances, and mechanical requirements
Material grade Affects yield strength, toughness, and compliance
Mill test documentation Supports traceability and inspection decisions
Dimensional tolerance Protects real steel angle load capacity and fit-up quality

A Practical Review Method Before Approval

A good review process does not need to be complicated.

It needs to be disciplined and repeatable.

When evaluating steel angle sizing, use this short sequence:

  1. Confirm the real load case, including temporary and accidental loads.
  2. Check leg size, thickness, and orientation against section property requirements.
  3. Review unbraced length, restraint condition, and buckling exposure.
  4. Assess holes, welds, and connections for net section and eccentricity effects.
  5. Verify standard, grade, tolerance, and traceability documents.
  6. Reserve margin for corrosion, fabrication variation, and service uncertainty.

This approach keeps steel angle selection tied to risk control, not just catalog comparison.

What Better Steel Angle Decisions Look Like

Better decisions usually come from asking sharper questions earlier.

Can this steel angle carry the load after holes are added?

Will restraint remain the same after installation?

Does the selected thickness still work after corrosion allowance?

Is the supplied section identical to the design standard?

Those questions help uncover problems while changes are still inexpensive.

In the steel industry, early correction protects schedule, cost, and site safety at the same time.

That is the real value of understanding steel angle load capacity in a practical way.

The goal is not to choose the largest angle.

It is to choose the right steel angle for the exact load path, connection, environment, and compliance requirement.

When that discipline becomes standard practice, fewer issues reach the shop floor or the job site.
