Choosing a steel angle starts with size, but the real decision sits deeper than leg dimensions alone. Load path, connection method, stability, corrosion exposure, fabrication tolerance, and supply consistency all shape whether a profile performs well in service or creates avoidable cost later.

That matters across the steel products chain, where sections, plate, pipe, and long products feed construction, transport, energy, equipment manufacturing, and infrastructure. In that setting, a steel angle is a simple section on paper, yet a highly practical component in structural and fabricated systems.

A sound selection process links profile geometry to actual load use. It also considers production standards, downstream processing, and replacement availability, because the right profile is not only strong enough, but also efficient to source, cut, weld, bolt, galvanize, and inspect.

What a steel angle really does in a structure

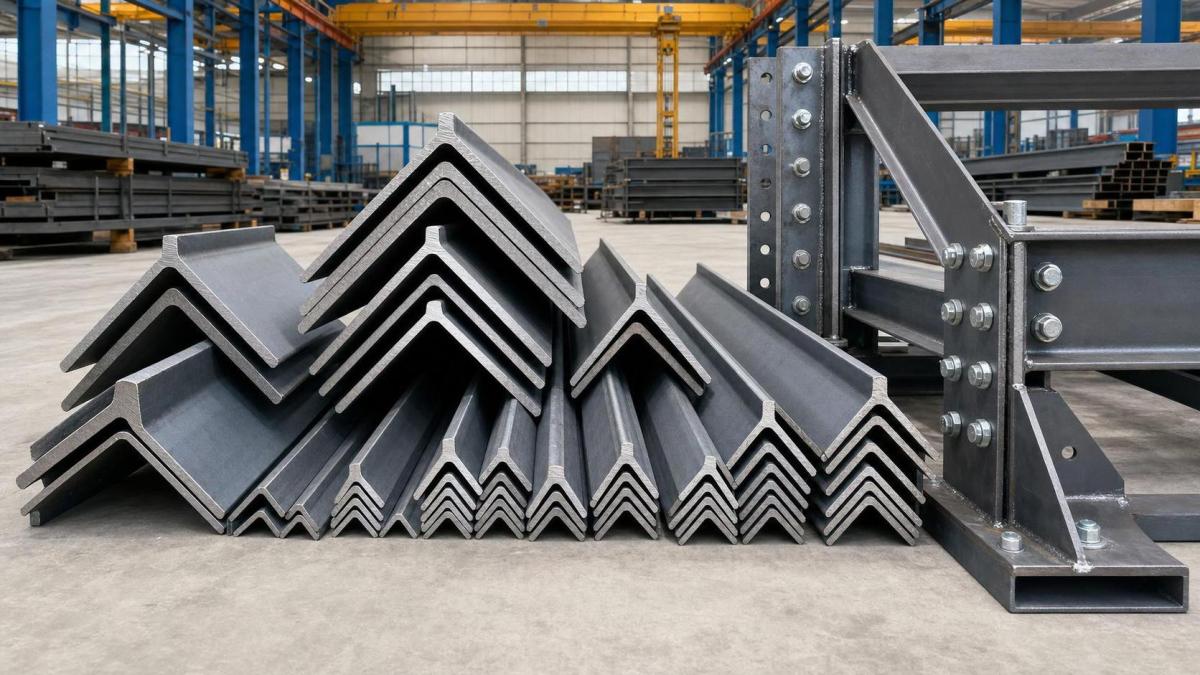

At its most basic, a steel angle is an L-shaped section with two legs joined at a heel. It may be equal leg or unequal leg, hot rolled or formed, and supplied in several thickness and grade combinations.

Its value comes from versatility. A steel angle can carry tension, compression, bending, or a combination of these, depending on orientation, restraint, and connection details.

In practical assemblies, the profile often works as a bracket, frame member, edge stiffener, truss component, support seat, rack element, or secondary structural part. Because it is easy to drill, weld, and connect, it remains common in both heavy and light fabrication.

Simple geometry does not mean simple behavior. Angles are not doubly symmetrical sections, so their centroid, principal axes, and buckling response deserve attention when loads rise or span conditions become more demanding.

Why size selection has become more critical

Current projects are under pressure from tighter budgets, faster delivery schedules, and stricter quality expectations. Small errors in profile choice can increase material use, rework, coating cost, and installation time.

The broader steel industry also affects this decision. Since steelmaking depends on iron ore, scrap, rolling capacity, and stable upstream supply, available section ranges and lead times influence what is practical to specify.

A technically ideal steel angle is not always the best project choice if it is hard to source, requires custom rolling, or creates delays in downstream fabrication. Availability and substitution risk are part of performance, not separate from it.

Another reason for closer evaluation is mixed service demand. The same profile family may appear in warehouses, conveyor frames, power equipment, telecom structures, trailers, ship support members, and modular systems, but the governing checks differ sharply.

How sizes, legs, and thickness change load behavior

When comparing one steel angle to another, the main variables are leg length, thickness, leg equality, steel grade, and member length. These affect section area, moment of inertia, radius of gyration, and local stiffness.

Equal leg profiles

Equal leg sections are widely used where balanced geometry helps detailing. They are common in frames, cleats, edge members, bracing, and general supports.

They simplify layout and stock management. In many fabrication shops, that alone can reduce cutting errors and connection mismatch.

Unequal leg profiles

Unequal leg sections are useful where one leg must offer a wider bearing face or connection surface. They can improve fit in asymmetrical assemblies or when clearance is limited on one side.

In some cases, an unequal steel angle achieves the required function with less material than an oversized equal leg alternative. That can help when weight and cost need tighter control.

Thickness and slenderness

Thickness matters beyond strength. Thicker sections resist local deformation better at bolt holes, weld zones, and bearing points. They also reduce the risk of distortion during fabrication and handling.

Long, thin members may satisfy area requirements but still perform poorly in compression or under eccentric loading. Slenderness often becomes the hidden reason a seemingly adequate steel angle fails review.

Typical load uses across industries

The same steel angle profile can serve different purposes depending on the system around it. Looking at use by load condition is more useful than treating all angle sections as interchangeable.

Compression members and bracing

In towers, frames, and secondary steelwork, angle sections often act in axial compression. Here, unbraced length, end restraint, and slenderness checks are usually more important than gross area alone.

Tension components

Bracing ties, truss members, and connection elements frequently use steel angle in tension. Net section at holes, connection eccentricity, and weld balance become critical in these cases.

Shelf, seat, and support applications

Support seats under equipment, ducting, cable trays, or pipe systems often rely on angle sections. Bearing pressure, local bending, and heel stress deserve review, especially when loads are concentrated.

Frames and fabricated assemblies

In racks, guards, machine bases, trailers, and modular structures, steel angle is valued for simple assembly. Fabrication efficiency often matters as much as raw structural capacity.

That is why a slightly heavier profile may still be the better option if it reduces reinforcement plates, special fixtures, or repeated welding operations.

What to check before finalizing a profile

A reliable decision usually comes from a short list of coordinated checks rather than a single capacity figure. The most common review points are practical and measurable.

• Confirm the governing load case, including static, dynamic, impact, or cyclic effects.
• Check whether the steel angle works in tension, compression, bending, or combined action.
• Review connection geometry early, especially bolt edge distance, hole placement, and weld access.
• Compare hot rolled and formed options if tolerances, coating, or edge condition matter.
• Verify corrosion protection needs, since galvanizing and paint systems may affect thickness choice.
• Check stock range, mill standard, and substitution options to avoid supply bottlenecks.
• Look at total fabricated cost, not only the price per ton.

This approach is especially useful in sectors where steel sections move through long supply chains. A profile that aligns with standard rolling sizes can improve delivery certainty and reduce downstream disruption.

Common mistakes in steel angle evaluation

One common mistake is selecting by leg size only. Two angle sections with similar outer dimensions may behave very differently once thickness, length, and connection eccentricity are included.

Another is treating the member as fully effective along both legs under all conditions. In reality, connection layout and load introduction can shift stresses in ways that reduce usable efficiency.

Corrosion environment is also underestimated. Outdoor, marine, and industrial settings can shorten service life quickly if coating, drainage, and crevice exposure are ignored.

Fabrication constraints cause a different kind of error. A steel angle that works in calculation may still be awkward to clamp, distort during welding, or complicate repetitive production.

A practical way to compare options

For most projects, comparison becomes clearer when each steel angle option is rated against the same decision frame. That keeps attention on performance, manufacturability, and supply realism together.

That comparison method supports better discussions with fabricators, stockists, and project teams. It also helps separate essential requirements from habits carried over from older specifications.

Where the next decision should focus

The right steel angle is usually the one that balances capacity, stability, fabrication ease, and supply practicality within the real service environment. No single size chart can answer that on its own.

A useful next step is to sort options by load condition, connection type, exposure class, and standard availability. Once those filters are clear, profile selection becomes faster, more defensible, and easier to align with total project cost.

For any upcoming review, it is worth building a short comparison sheet around section size, thickness, steel grade, unbraced length, and fabrication method. That creates a stronger basis for choosing a steel angle profile that works well beyond the drawing stage.
