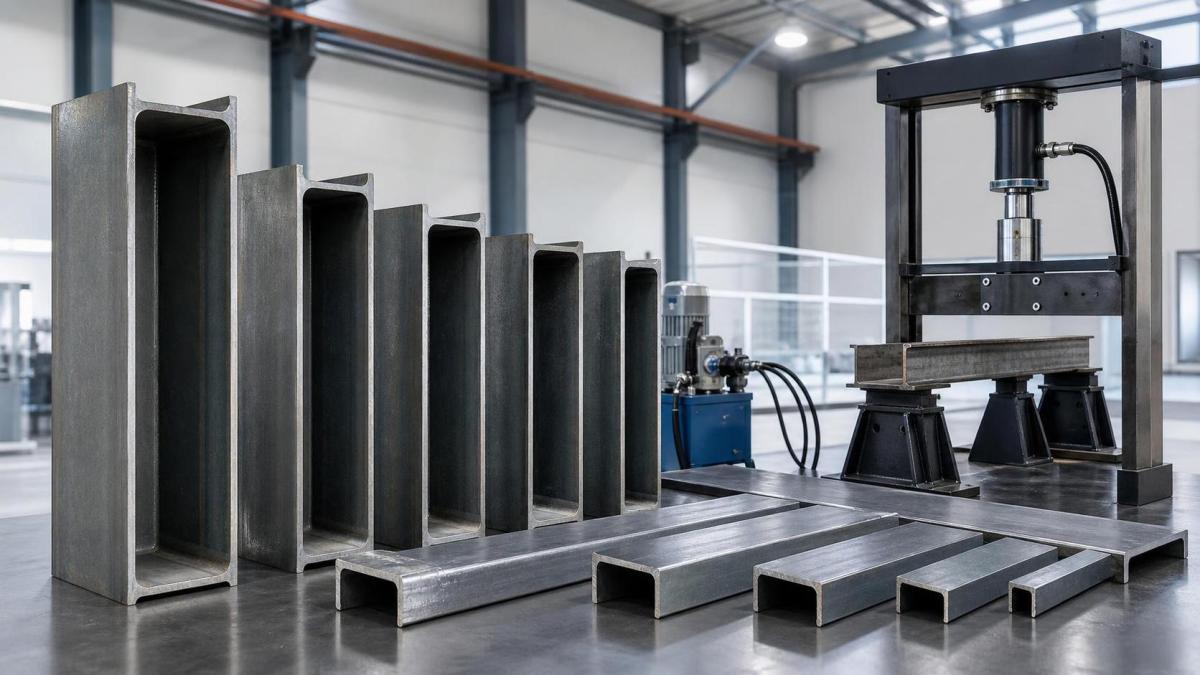

Steel Channel Sizes and Load Limits Explained

Choosing the right steel channel is not a paperwork exercise. For quality inspectors and safety managers, it is one of those decisions that quietly affects fit-up, load path, installation safety, inspection outcomes, and long-term service behavior. A channel that looks “close enough” on a drawing can still create problems if the flange thickness, section depth, steel grade, or support condition does not match the actual demand. This guide focuses on what you need to check when reviewing a steel channel for structural or industrial use, especially when the question is not just “what size is it?” but “what can it safely carry, and under what conditions?”

In practice, load limits are never defined by size alone. Two channels with similar depth may perform very differently because of web thickness, flange geometry, manufacturing standard, material grade, span, bracing, or how the load is applied. That is where many purchasing and inspection mistakes start.

Start with the section designation, not the nickname

On site, people often say “6-inch channel” or “100 channel” as if that fully defines the product. It does not. A steel channel must be identified by the standard and the full section designation. In different markets, you may be looking at UPN, UPE, C channel, MC channel, or ASTM channel sections, and those are not interchangeable just because the overall depth appears similar.

For inspection purposes, confirm these points before discussing load:

• Applicable product standard on the mill test certificate or procurement document
• Nominal depth, flange width, web thickness, and flange thickness
• Section mass per meter or per foot
• Steel grade
• Length tolerance, straightness, and twist tolerance where relevant

If any one of those is missing, the load conversation is incomplete. This is especially common when a buyer substitutes by visual similarity rather than section properties.

Common steel channel size ranges you will actually see

Steel channel sections are used across frames, equipment skids, stair supports, lintels, trailer structures, rack components, and secondary steelwork. The size range in circulation is broad, but most routine inspections tend to fall into a few bands:

Those ranges are broad on purpose. Exact load capacity depends on the published section properties from the relevant standard or manufacturer data, then on the structural design method used by the engineer.

Do not ask for a load limit without asking three other questions

When someone asks, “What is the load limit for this steel channel?” the honest answer is usually, “Under what conditions?” That is not dodging the question. It is the only technically sound response.

A channel may be adequate in one arrangement and unsafe in another, even with the same applied load. Before accepting any stated capacity, verify:

1. Span length. Capacity drops quickly as span increases.
2. Load type. Uniformly distributed load, point load, impact load, and dynamic load are not equivalent.
3. Support and restraint condition. A laterally restrained member behaves differently from an unbraced one, and channels are particularly sensitive to twisting.

If the channel is used with the open side facing one direction and the load is not centered through the shear center, torsion becomes part of the problem. That catches people off guard in equipment frames and bracketed supports.

The section properties matter more than the visual size

For load checks, the useful numbers are section modulus, moment of inertia, radius of gyration, and sometimes torsional properties, depending on the design case. Quality teams do not always perform full structural design, but you should know whether the section property sheet exists and whether the engineer’s calculation references the correct section.

One recurring problem in procurement is substitution by nominal depth only. A 200 mm steel channel from one standard may have a different flange shape and different section modulus from another 200 mm section. The member may still fit physically while carrying less bending load than expected.

If your review package does not include section property data, treat the load claim as incomplete.

Material grade changes the answer, but not by itself

People sometimes assume a higher-strength grade automatically solves a capacity problem. Sometimes it helps. Sometimes it does not help enough. If the governing failure mode is yielding in bending, grade matters directly. If the governing issue is lateral-torsional buckling, web crippling, local buckling, excessive deflection, or a weak connection, the benefit may be limited.

This is where safety review should slow down a little. Ask whether the limitation is strength, stiffness, or stability. They are often mixed together in field decisions, and that leads to oversimplified substitutions.

Deflection is not a secondary issue

A steel channel can pass a strength check and still perform poorly in service because it deflects too much. For quality control, this matters in walkways, equipment rails, supports for sensitive machinery, door frames, and anything that must stay aligned.

Serviceability limits are project-specific and should come from the design documents or governing code. Do not invent a universal deflection limit. If it is missing, mark it as a design clarification item rather than guessing. Excessive sag, vibration, or recurring bolt loosening often shows up before anyone formally recognizes a deflection problem.

Pay attention to how the load enters the channel

A steel channel loaded through its web behaves differently from one loaded through one flange or through a welded bracket. In the field, loads are not always as clean as the drawing suggests. Small offset loads can introduce twisting, and channels are less forgiving of eccentricity than more symmetrical sections.

Quick checks worth making during inspection:

• Is the load centered or eccentric?
• Are there concentrated loads near supports?
• Have holes, copes, or cutouts reduced the effective section in the highest-stress area?
• Has field welding introduced heat distortion or weakened the detailing intent?
• Are paired channels intended to act together, and if so, are spacers or connectors installed as designed?

The last point matters more than it looks. Back-to-back or toe-to-toe channel assemblies only perform as assumed if the connection pattern actually creates composite behavior.

Standards and certificates: what to verify, and what not to assume

For technical and compliance review, rely on traceable documents rather than catalog shorthand. Depending on the market, the relevant basis may include ASTM, EN, JIS, GB/T, or project-specific specifications. The exact governing standard should already be identified in the procurement or design package.

Check that the mill test certificate and the delivered section correspond to the same product family and grade. Do not assume that a chemical composition certificate alone confirms dimensional compliance. It does not. Dimensional inspection, mass verification where appropriate, and marking traceability still need their own checks.

If corrosion protection is specified, verify that coating or galvanizing requirements are separately documented. Coating thickness does not compensate for an undersized section.

The mistakes that show up most often

A few errors come up again and again in steel channel reviews:

• Using nominal size as a substitute for section properties
• Accepting a vendor load claim without span and support conditions
• Ignoring torsion because the member “looks heavy enough”
• Allowing field-drilled holes in high-moment regions without engineering review
• Checking base material but overlooking weak welds or bolt groups
• Comparing channels across standards without matching geometry and grade

Most of these are not dramatic failures at first. They start as fit issues, alignment drift, unusual vibration, local distortion, or repeated repair requests. That is why quality and safety people usually see the warning signs before anyone talks about redesign.

A practical review sequence for inspectors and safety managers

If you need a working checklist, keep it simple and disciplined.

1. Match the delivered steel channel to the drawing designation and standard.
2. Verify actual dimensions and identify any substitutions.
3. Confirm steel grade and traceability documents.
4. Check whether the load case used in design matches the real installation.
5. Review span, restraint, and connection details before accepting stated capacity.
6. Look for field changes: holes, cuts, added brackets, missing stiffeners, altered welds.
7. Confirm serviceability expectations where alignment or vibration matters.
8. Escalate any unsupported load claim for engineering review instead of approving by experience alone.

That last step is worth keeping. Experience is valuable, but a channel’s safe load limit is still a calculation tied to a defined condition set.

What to do when the documents are incomplete

This happens more often than people admit. If section properties, applicable standard, or design assumptions are missing, do not fill the gap with a generic table from the internet. Mark the issue clearly as 【待核实】 and request the basis for capacity: section designation, grade, span, support condition, and design method. Without that, the steel channel may be impossible to evaluate responsibly.

For procurement and inspection teams, that approach is not overly cautious. It is the difference between checking steel and merely counting pieces. When steel channel sizes and load limits are reviewed with the right questions up front, rework drops, substitutions become easier to control, and site safety decisions get much cleaner.
