Choosing a steel channel starts with more than a size chart. The section must carry load safely, fit the fabrication method, and stay economical across supply, transport, and installation.

That matters even more in a steel market tied closely to construction, equipment manufacturing, energy, transport, and other downstream sectors where timing and material efficiency affect the entire project chain.

A well-matched steel channel improves stiffness, connection performance, and usage efficiency. A poor match can add weight, create local weakness, or complicate welding and bolting without adding useful capacity.

Why steel channel selection deserves closer attention

Steel channel sections are common in frames, supports, equipment bases, truck bodies, rail components, platforms, and secondary building members.

Their popularity comes from a practical balance of strength, open geometry, and ease of fabrication. Yet those same benefits can lead to oversimplified selection when only nominal depth is considered.

In actual use, load direction, span, support condition, and connection layout can change performance significantly. Two sections with similar depth may behave very differently under bending, torsion, or concentrated loads.

This is why steel channel sizing should be tied to the real load case, not just to a familiar section name or an earlier project reference.

What a steel channel size really tells you

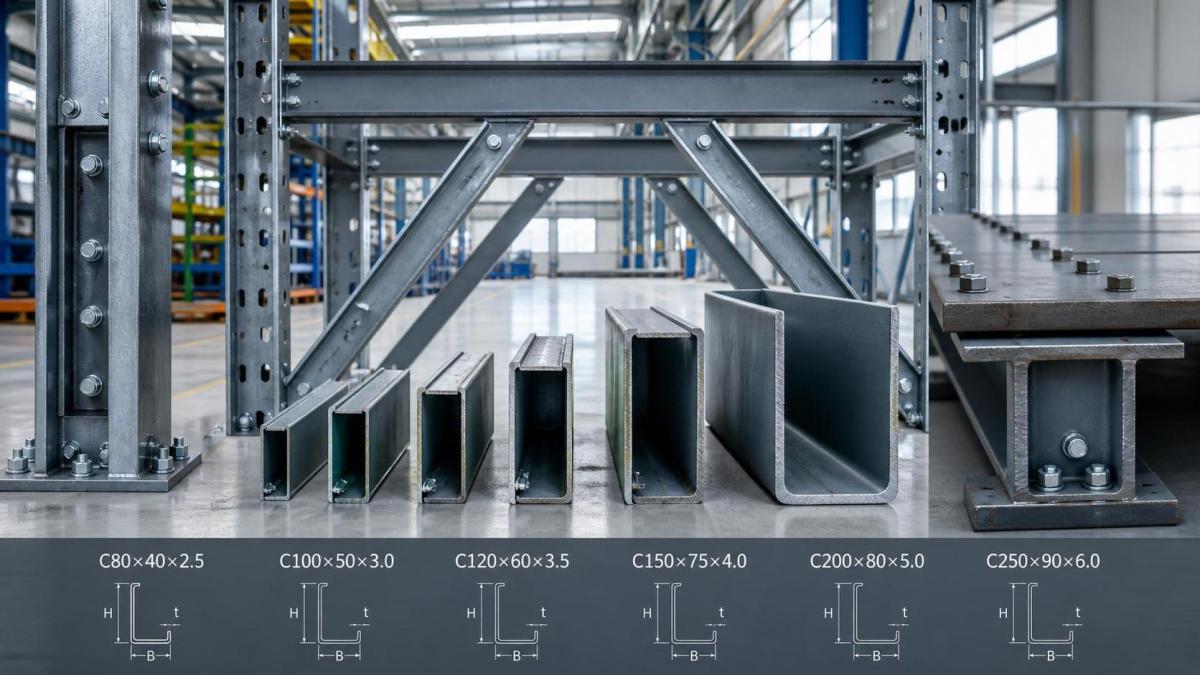

A steel channel is typically defined by overall depth, flange width, web thickness, flange thickness, and unit weight. These values describe geometry, but they also hint at structural behavior.

Depth strongly influences bending resistance about the major axis. Wider flanges can improve stability and connection area. Thicker webs help with shear and local bearing. Thicker flanges support fastening and reduce local distortion.

Section properties are the next layer. Moment of inertia, section modulus, radius of gyration, and torsional characteristics often decide whether a steel channel is merely workable or genuinely efficient.

Simple size matching misses this point. A lighter channel may be adequate in one orientation and inadequate in another, especially when the open side creates eccentricity or twisting sensitivity.

Key dimensions and what they influence

Load use is about more than maximum capacity

When people discuss steel channel load use, they often focus on a single load number. In practice, selection depends on how the load is applied, repeated, supported, and combined.

Uniformly distributed loads usually favor efficient bending performance. Point loads can create high local stress at bearings or attachments. Eccentric loads may introduce torsion that open sections handle less gracefully than closed shapes.

Deflection limits also matter. A steel channel may pass a strength check but still perform poorly if vibration, misalignment, or serviceability affects equipment, cladding, or moving components.

In corrosive or outdoor settings, load use should be reviewed together with coating system, drainage, and maintenance access. Long-term durability can change the true value of a section choice.

Common load-related checks

• Major-axis bending capacity under design loads
• Web shear and local bearing at supports
• Lateral-torsional stability for unbraced lengths
• Deflection under service loads
• Connection effects from bolt holes, welds, or clips
• Fatigue exposure in repeated or dynamic loading

Where different steel channel sizes are typically used

Not every steel channel serves the same purpose. Lighter sections often suit bracing frames, cable trays, access structures, or support rails where spans are moderate and connection speed matters.

Medium sections are common in mezzanines, equipment skids, trailers, machine bases, and platform framing. They usually balance strength with manageable weight.

Heavier channels appear in transfer structures, industrial supports, transport infrastructure, and areas with concentrated or repeated loading. In these cases, local reinforcement may still be needed around joints.

The broader steel supply chain matters here. Availability by standard, grade, and rolling origin can influence whether a theoretically ideal steel channel is also practical for lead time and cost control.

Selection by application context

Practical factors that change the best section

A steel channel that works structurally may still be a poor project choice if fabrication becomes slow or wasteful.

Hole placement, coping, welding access, galvanizing requirements, and fit-up tolerances all influence the final decision. Open sections are often easy to process, but asymmetry can complicate alignment.

Material grade should also be checked alongside size. Higher strength steel may reduce weight, but not always total cost, especially if forming limits, weld procedures, or procurement options become tighter.

Standards matter as well. Channel dimensions and property tables vary across ASTM, EN, JIS, and other systems. Equivalent depth does not guarantee equivalent performance.

Questions worth asking before finalizing a steel channel

• Is the controlling limit strength, deflection, stability, or fatigue?
• Will the channel carry uniform, point, or eccentric loads?
• How much unbraced length exists in service?
• Do connections weaken the web or flange significantly?
• Is the selected size readily available in the required standard and grade?
• Will coating, corrosion allowance, or outdoor exposure change the choice?

A sensible way to compare options

Useful comparison starts with the load case, span, support details, and section orientation. After that, compare candidate steel channel options using section modulus, inertia, weight, and fabrication impact together.

This usually narrows the field quickly. One channel may be lighter but too flexible. Another may be strong enough yet difficult to connect. The best option tends to be the section with balanced performance rather than the largest profile.

In a market where steel products support everything from buildings to rail transit and energy equipment, disciplined section selection improves both engineering reliability and downstream execution.

The next step is to build a short comparison sheet for each steel channel candidate. Include load assumptions, section properties, connection effects, availability, coating needs, and expected fabrication effort before locking the final section.
