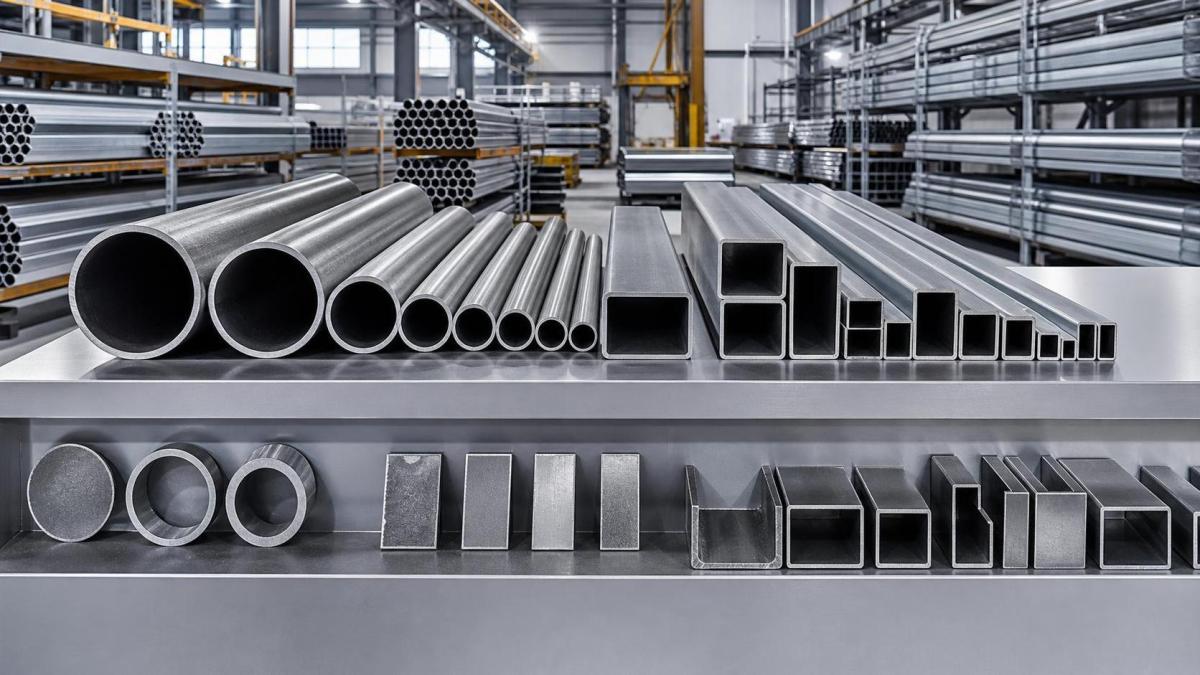

Steel Tube Size and Grade Guide for Structural and Industrial Use

Choosing the right steel tube starts with size, wall thickness, and grade. Those three factors shape strength, fabrication ease, corrosion resistance, and total cost.

In structural and industrial projects, a steel tube is never just a hollow section. It is a load path, a process component, and often a cost driver.

That is why technical comparison must go beyond outside dimensions. The real decision depends on standards, tolerances, chemistry, mechanical properties, and service conditions.

In practical sourcing, two steel tube options may look similar on paper. Yet one may weld better, bend cleaner, or last longer in corrosive duty.

This guide explains how to read steel tube size data, compare common grades, and align specifications with structural and industrial use.

Why steel tube size matters first

A steel tube specification usually begins with outside diameter, wall thickness, and length. For square or rectangular sections, width and height replace diameter.

These dimensions influence section modulus, buckling resistance, flow capacity, handling weight, and fabrication limits. They also affect freight efficiency and inventory planning.

For structural use, the steel tube must carry axial, bending, or torsional loads. A larger section may improve stiffness, but it also increases mass and connection demands.

For industrial use, the steel tube may support fluid transfer, equipment frames, sleeves, rollers, or mechanical parts. Here, wall thickness often becomes the key tradeoff.

Thin-wall steel tube can reduce weight and cost. However, it may be less forgiving during threading, forming, heavy welding, or external impact.

Main size terms to compare

• Outside diameter or section width: controls fit, connection design, and envelope space.
• Wall thickness: affects pressure capacity, weld prep, durability, and section strength.
• Inside diameter: matters for flow, clearance, and insertion of mating parts.
• Length: influences cut loss, transport limits, and installation productivity.
• Tolerance: determines how closely the steel tube matches design assumptions.

How wall thickness changes performance

Wall thickness is one of the most important steel tube variables. It affects load capacity, local dent resistance, fatigue behavior, and service life.

In structural members, thicker walls generally improve resistance to local buckling. That becomes useful in columns, trusses, equipment skids, and heavy support frames.

In industrial systems, a thicker steel tube may handle abrasion, cyclic pressure, or clamp loads more reliably. It also gives more allowance for corrosion over time.

Still, thicker is not always better. Increased wall thickness raises weight, material cost, and sometimes machining time. It may also slow bending and reduce forming flexibility.

A balanced steel tube choice usually starts from the minimum acceptable wall, then checks real fabrication and safety margins.

Typical wall thickness checks

1. Confirm design load or internal pressure.
2. Review corrosion allowance and wear rate.
3. Check welding heat input and fit-up requirements.
4. Evaluate bending radius or forming process.
5. Compare available mill sizes against project tolerance.

Common steel tube grades and what they mean

Grade defines the steel tube’s chemical composition and mechanical performance. In many cases, it also hints at weldability, toughness, and suitability for post-processing.

For structural and industrial use, common references include ASTM, EN, JIS, and GB standards. Each system classifies steel tube products in its own way.

ASTM A500 is widely used for structural tubing. Grades B and C are often selected for cold-formed round, square, and rectangular steel tube sections.

ASTM A53 and ASTM A106 appear often in industrial piping discussions. A53 suits general mechanical and pressure service, while A106 is common in higher-temperature service.

EN 10219 covers cold-formed structural hollow sections. EN 10210 focuses on hot-finished structural hollow sections with different forming characteristics and tolerances.

Grade comparison points

In real evaluation work, the best steel tube grade is the one that meets service demands without forcing unnecessary cost into the project.

Structural steel tube versus industrial steel tube

The same steel tube may not perform equally well in structural and industrial roles. The loading pattern, inspection standard, and failure mode can be very different.

Structural steel tube usually prioritizes section properties, straightness, connection reliability, and code compliance. Applications include columns, braces, canopies, and support frames.

Industrial steel tube often focuses on process compatibility. That may include pressure, temperature, media corrosion, fatigue cycles, or dimensional fit with equipment.

This also means selection documents should match the use case. A strong steel tube on paper can still be the wrong choice if the governing standard is mismatched.

Quick application guide

• Building frames: focus on yield strength, geometry, and code-listed grades.
• Machine structures: focus on tolerance, flatness, and weld distortion control.
• Process lines: focus on temperature rating, corrosion, and pressure class.
• Outdoor supports: focus on coating system and corrosion allowance.
• Fabricated parts: focus on bendability, machinability, and cut quality.

Manufacturing method and its impact on steel tube selection

Manufacturing route changes how a steel tube behaves in service and during fabrication. The main distinction is welded versus seamless construction.

Welded steel tube is common in structural sections and many industrial applications. It is usually more cost-effective and widely available across sizes.

Seamless steel tube is often selected when pressure, temperature, or critical service conditions demand uniformity without a longitudinal weld seam.

Cold-formed steel tube can offer efficient dimensional control. Hot-finished steel tube may provide better formability and reduced residual stress in some structural uses.

The right answer depends on code, risk level, and how the steel tube will be cut, welded, bent, coated, and inspected.

Corrosion resistance, coating, and life-cycle cost

A steel tube should never be judged by purchase price alone. Corrosion risk can completely change the most economical option over the service life.

For indoor dry service, black steel tube or painted steel tube may be enough. For outdoor or humid service, galvanized or coated options deserve serious attention.

In chemical or marine exposure, standard carbon steel tube may need lining, higher corrosion allowance, or a different alloy approach.

A slightly higher initial steel tube cost can reduce maintenance shutdowns, repainting cycles, leakage risk, and replacement labor later.

That is often the more meaningful cost signal in long-running industrial assets.

Corrosion review checklist

• Exposure to rain, salt, condensate, or chemicals.
• Drainage and venting design around the steel tube.
• Coating compatibility with cutting and welding steps.
• Inspection access after installation.
• Expected maintenance interval and shutdown cost.

How to evaluate standards, documentation, and supplier risk

Good steel tube selection is not only about material data. It also depends on document quality, traceability, and supplier consistency.

Mill test certificates should align with the ordered standard, grade, size, heat number, and required test items. Any mismatch deserves immediate review.

Dimensional inspection is equally important. A steel tube outside tolerance may create hidden issues in fit-up, robotic welding, bolted joints, or assembly jigs.

From a procurement risk view, supply stability matters too. Some steel tube grades are standard stock, while others require longer rolling cycles or mill minimums.

A technically ideal steel tube is less useful if lead time disrupts installation or forces costly substitutions later.

What to confirm before approval

1. Applicable standard and exact grade designation.
2. Size range, wall thickness, and dimensional tolerance.
3. Mechanical properties and chemistry limits.
4. Required tests, coating, and inspection method.
5. Mill origin, certificate format, and delivery schedule.

A practical steel tube selection workflow

A reliable steel tube decision usually follows a simple sequence. Start with service conditions, then narrow options by standard, size, grade, and fabrication needs.

Next, compare total cost rather than unit price alone. Include coating, scrap rate, weld prep, inspection effort, and expected maintenance exposure.

Finally, verify documentation and supply reliability before release. That step often prevents the most expensive errors in structural and industrial procurement.

In short, the right steel tube is the one that fits the design, survives the environment, supports fabrication, and arrives on time with clear traceability.

When comparing your next steel tube package, use size, wall thickness, grade, and standard as one connected decision set. That approach reduces risk and improves long-term performance.
