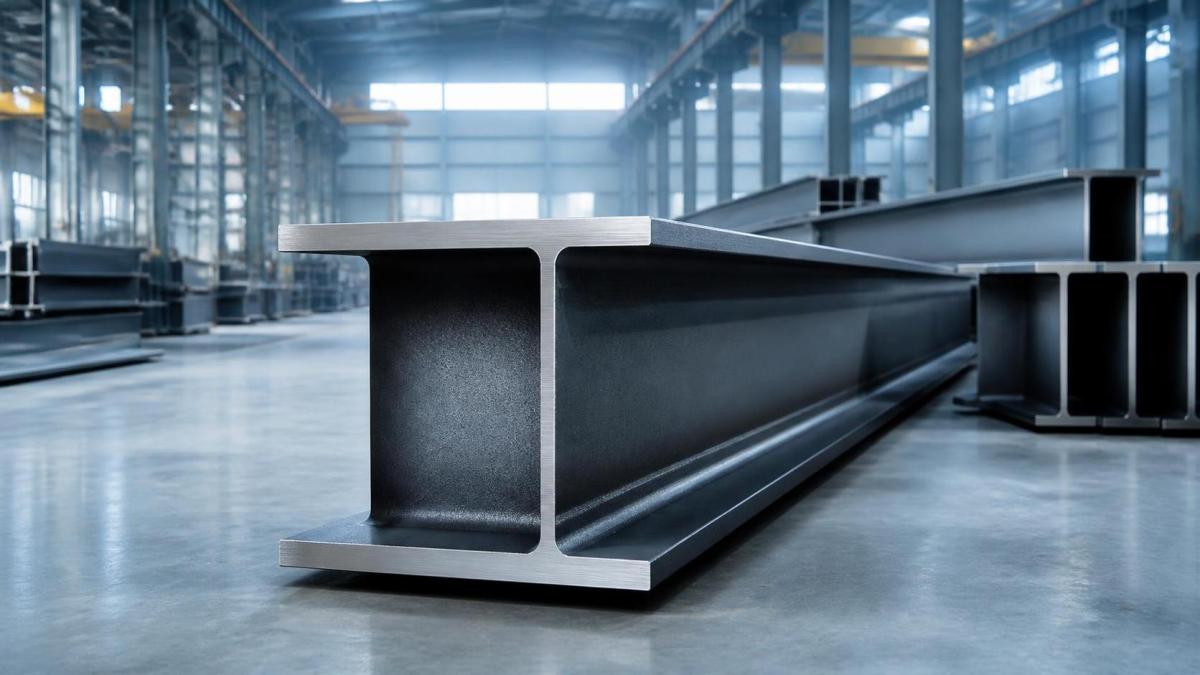

Which H beam steel specifications matter most for load capacity

When an H beam is underdesigned, the problem rarely shows up on paper first. It appears later as excessive deflection, connection rework, fabrication delays, or a redesign that affects the whole steel package. That is why load capacity decisions should not start with unit price or a familiar beam size. They should start with the H beam steel specifications that actually control how the section behaves under bending, shear, axial force, and stability demands.

For project managers, this is not just an engineering detail. Steel is a core upstream material for construction, infrastructure, equipment manufacturing, energy, shipbuilding, and rail systems. Choices made at the section-selection stage influence procurement lead time, fabrication complexity, transport planning, and sometimes the availability of substitute sizes in the market. A beam that works structurally but is difficult to source can still become a project risk.

So which specifications matter most? The short answer is that geometry usually drives structural efficiency first, while material grade and manufacturing standard determine how much usable capacity you can safely count on. But that answer is too simple for real projects. The better approach is to look at how each specification affects load path, span behavior, and execution on site.

Depth is often the first number that changes capacity

Section depth has an outsized effect on bending resistance and stiffness. In many beam applications, increasing depth improves the section modulus and moment of inertia more effectively than simply adding thickness everywhere. That matters because two beams with similar weight can perform very differently over the same span.

For floor beams, transfer beams, mezzanine framing, or industrial platforms, depth often becomes the main lever when deflection limits are tight. A beam may be strong enough in pure strength terms but still fail serviceability criteria if it bends too much under working loads. That distinction is important in project decision-making. If vibration, equipment alignment, façade interfaces, or slab levels are sensitive, stiffness may govern before ultimate strength does.

This is one reason experienced teams do not ask only, “How much load can this beam carry?” They also ask, “At what span, with what deflection limit, and under which loading condition?” Without that context, a nominal beam size tells only part of the story.

Flange width and thickness decide more than many buyers expect

If depth is the first big driver, flange geometry is the next one to check closely. The flanges carry most of the bending stress in an H beam. Wider and thicker flanges usually improve bending capacity, but they also influence lateral stability, connection detailing, and local bearing performance.

In practical terms, flange width matters when the beam must resist lateral-torsional buckling, support concentrated loads, or connect to columns, braces, or secondary framing with limited eccentricity. A narrow flange may be structurally acceptable in a calculation model but less forgiving in fabrication or erection. A wider flange can make bolted connections easier and may provide better stability during temporary construction stages.

Flange thickness becomes critical where loads are high at supports, where connections transfer major forces, or where local flange bending may occur. This is especially relevant in industrial buildings, heavy equipment support frames, and crane runway structures, where load introduction is not always uniform.

Web thickness is about shear, buckling, and fabrication practicality

The web often gets less attention than the flanges, yet it becomes decisive in short spans with high reactions, transfer conditions, or support zones near concentrated point loads. Web thickness contributes directly to shear capacity. It also affects susceptibility to web crippling and local buckling, depending on the loading arrangement and whether stiffeners are needed.

In procurement discussions, teams sometimes focus on total beam weight and overlook how a thinner web may shift cost back into fabrication. If the design then requires additional stiffeners, coping adjustments, or more demanding weld control, the lighter section may not be the simpler one. That tradeoff is worth checking early, especially when shop capacity or site welding access is limited.

Where openings are planned in the web for MEP routing, the original web thickness matters even more. Once the web is perforated, the section behavior changes, and the margin you thought you had can disappear quickly unless the opening design is fully engineered.

Steel grade matters, but it does not replace the right section shape

A higher strength material grade can increase available design strength, but it is not a shortcut around poor section selection. In many building applications, changing from one grade to a stronger one may help with ultimate capacity, yet serviceability, buckling, connection behavior, and weldability still need review. If stiffness controls the design, a stronger grade alone may offer little benefit.

This is where standards and project location matter. H beam steel specifications are not universal across all markets. Dimensions, tolerances, grades, and designation systems can vary under ASTM, EN, JIS, GB, or other regional frameworks. A beam that looks equivalent by nominal size may differ in actual sectional properties or material requirements. For cross-border sourcing, that is not a minor detail. It affects design verification, approval workflow, and sometimes even fire protection assumptions.

Material grade should therefore be checked alongside chemical composition limits, weldability needs, low-temperature performance where relevant, and the governing project specification. On critical jobs, substitution decisions should never be made from strength grade alone.

Load capacity is not one number

One reason beam selection becomes contentious is that “load capacity” sounds singular, while real structural performance is conditional. An H beam can be limited by:

• major-axis bending
• shear in the web
• deflection under service loads
• lateral-torsional buckling in unbraced spans
• local buckling in slender elements
• bearing and crippling at supports
• combined axial and bending actions in frame systems

That is why the most useful H beam steel specifications are not just nominal size and weight. You also need the sectional properties from the applicable standard: cross-sectional area, section modulus, moment of inertia, radius of gyration, and sometimes torsional properties if stability is sensitive. These values let engineers compare sections in a way that aligns with the actual limit state.

A quick decision framework for project teams

When reviewing beam options with design, procurement, and fabrication teams, it helps to separate the questions into a few practical layers rather than debating one size against another in the abstract.

This kind of review is especially useful now that steel supply chains are more interconnected. The steel industry sits upstream of most capital projects, and availability can shift by region, mill schedule, rolling range, and transport constraints. Sometimes the best technical section is not the best project section if lead time or standard mismatch creates downstream disruption.

Common mistakes in H beam selection

One common mistake is assuming heavier automatically means safer. Extra weight may add capacity, but if the issue is unbraced length, local detailing, or a deflection limit, the added mass may solve the wrong problem.

Another is treating “equivalent” imported sections as interchangeable without checking the governing standard tables. In steel sections, a few millimeters in flange or web thickness can materially affect section properties, connection fit-up, and coating quantities.

A third mistake is reviewing beam size without considering delivery form. Hot-rolled availability, cut length, splicing strategy, galvanizing limits, and transport restrictions can all influence whether the chosen section remains practical once it leaves the design model.

What to confirm before freezing the specification

Before final approval, it is worth confirming a handful of points across disciplines: the governing code and section standard, the controlling load case, the required unbraced length assumptions, connection force transfer, fabrication constraints, corrosion protection method, and expected supply route. Those checks do not replace engineering calculations, but they do reduce the chance of selecting a beam that works only in theory.

In most projects, the H beam steel specifications that matter most for load capacity are the ones that shape section properties first and execution risk second: depth, flange geometry, web thickness, steel grade, and the exact standard behind the designation. If those are aligned with the real load condition and the realities of supply, the beam choice is usually on solid ground. If they are not, problems tend to appear late, when changes are slower and more expensive.

For the next step, it usually makes sense to review not just a beam size list, but the full section-property table, applicable grade options, and realistic mill availability for the project region. That is where a technically acceptable selection becomes a workable project decision.
